Product outline
Force in 3 dimensions(X, Y, Z) can be measured at the same time
Safe overload rating of 500%– the three-axis force sensor with the high sensitivity and rigidity!
Dedicated amplifier FS300
±5 V output at the rated capacity for each direction: Fx, Fy, Fz (three axis).
As output signals for each direction is adjusted before shipping out, you can get calibrated(scaled) output by just connecting sensor and DC 24 V power supply to FS300.
Specifications
Model | Sensor:UPP-100NX3, Amplifier:FS300 |
---|---|
Rated capacity | Fx, Fy : ±100 N, Fz : 100 N |
Power supply voltage | DC 24 V±15% |
Consumption current | 150 mA or less |
Load signal output | Fx, Fy, Fz:±5 V |
Load resistance | 2 kΩ or more |
Response | 2 kHz |
I/O signal | Input: Auto zero command Output: Auto zero response |
Safe overload | 500% FS |
Non-linearity | 0.5% FS or less |
Hysteresis | 0.5% FS or less |
Repeatability | 0.5% FS or less |
Compensated temperature range |
0 to +40℃ |
Safe temperature range | -10 to +50℃ |
Temperature effect on zero | 0.5% FS/℃ or below |
Temperature effect on span | 0.05% FS/℃ or below |
Sensor material | Aluminum alloy |
Weight | Sensor:Approx. 70 g, Amplifier:Approx. 180 g |
Cable | 8 conductor flexible cable 1 m (Connector is included for FS300 connection) |
* Above specifications are achieved when the sensor(UPP-100NX3) is connected with the dedicated amplifier(FS300).
* Accuracy is not guaranteed in the range of Fz 0 to -5 V.

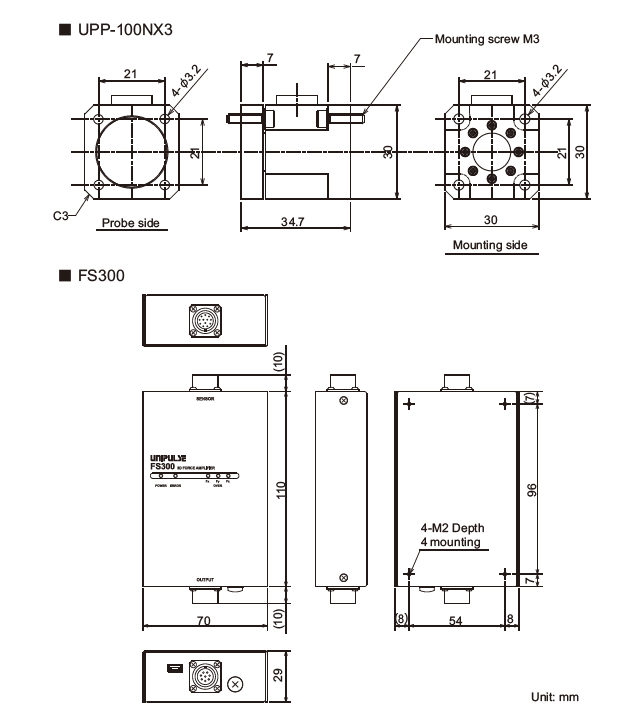

External dimension
