Product outline
● Capacity 50 kg/ 100 kg/ 200 kg/ 500 kg/ 1 t/ 2 t
● Constructed of stainless steel, Lightweight
Specifications
Model | S40A- 50KG |
S40A- 100KG |
S40A- 200KG |
S40A- 500KG |
S40A- 1T |
S40A- 2T |
---|---|---|---|---|---|---|
Rated capacity | 50 kg | 100 kg | 200 kg | 500 kg | 1 t | 2 t |
Rated output | 2 mV/V±0.25% | |||||
Safe overload | 150% R.C. | |||||
Zero balance | 0±0.01 mV/V | |||||
Non-linearity | 0.0180% R.O. | |||||
Hysteresis | 0.0170% R.O. | |||||
Creep | 0.0166% R.O./30 min | |||||
Compensated temperature range |
-10 to +40℃ | |||||
Safe temperature range | -30 to +70℃ | |||||
Temperature effect on zero |
0.0170% R.O./10℃ | |||||
Temperature effect on span |
0.0140% R.O./10℃ | |||||
Input resistance |
350 Ω or more | |||||
Output resistance |
350±1.5 Ω | |||||
Recommended excitation voltage |
5 V | |||||
Maximum excitation voltage | 12 V | |||||
Insulation resistance |
5000 MΩ or more | |||||
Degrees of protection |
IP68 | |||||
Cable | φ5.4 6 conductor shield cable 7.6 m Cable end: 7 wires | |||||
Load cell material |
Stainless steel | |||||
Deflection at rated |
0.15 mm ±15% | 0.25 mm ±15% | 0.38 mm ±15% | |||
Weight | 0.6 kg | 0.7 kg | 1.1 kg | 1.7 kg |

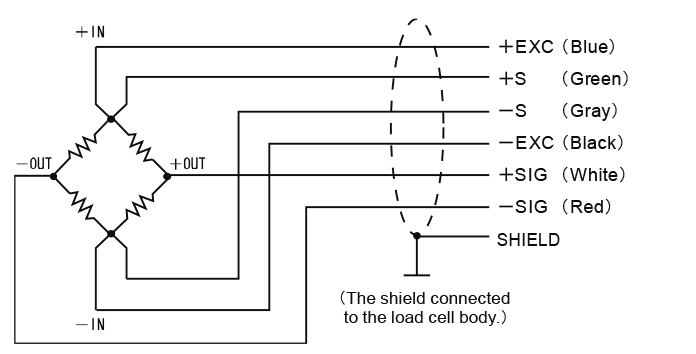

Wiring Diagram

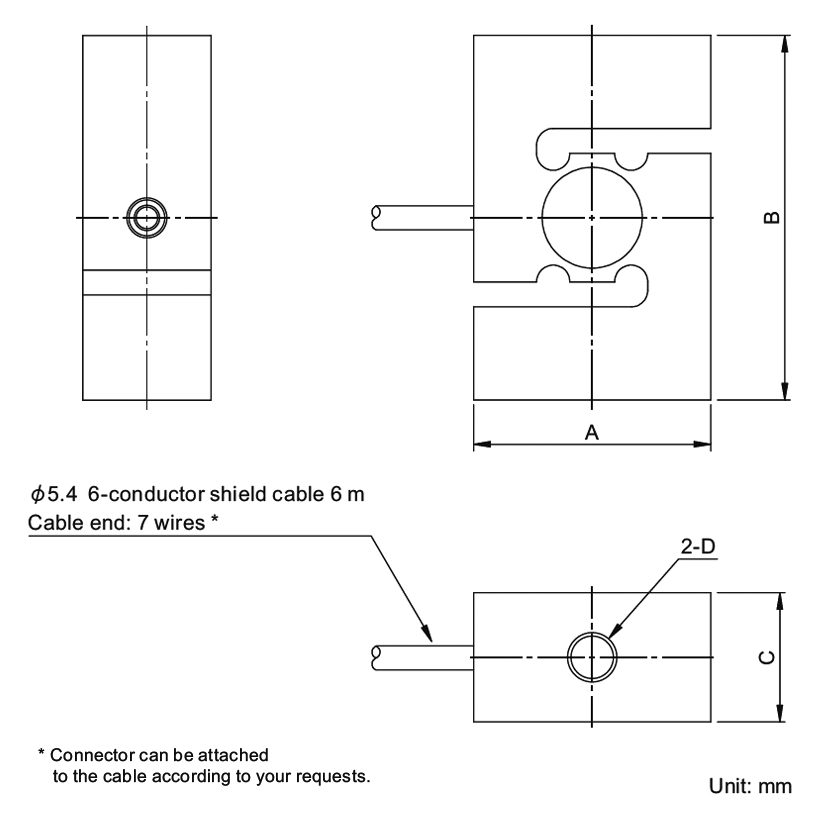

External dimension
Model | A | B | C | D |
---|---|---|---|---|
S40A-50KG | 50.8 | 63.5 | 25.4 | M8 |
S40A-100KG | 76.2 | M12 | ||
S40A-200KG | ||||
S40A-500KG | 57.2 | 87.3 | 31 | |
S40A-1T | ||||
S40A-2T | 69.8 | 100 | 36.5 | M24×2 |
