Product outline
Most appropriate for load control of bench scales, floor scales, conveyor scales, etc.
● Capacity 50/ 100/ 150/ 200/ 250/ 300 kg● Constructed of Aluminum, Lightweight
● Most appropriate for load control of bench scales, floor scales, conveyor scales, etc.
Specifications
Model | PW10A-50KG, PW10A-100KG, PW10A-150KG, PW10A-200KG, PW10A-250KG, PW10A-300KG |
---|---|
Rated capacity | 50 kg, 100 kg, 150 kg, 200 kg, 250 kg, 300 kg |
Rated output | 2.0±0.2 mV/V |
Safe overload | 150% R.C. |
Maximum safe side overload |
300% R.C. |
Zero balance | 0±0.1 mV/V |
Non-linearity | 0.0166% R.O. typ. |
Hysteresis | 0.0166% R.O. typ. |
Compensated temperature range |
-10 to +40℃ |
Safe temperature range |
-10 to +50℃ |
Temperature effect on zero |
0.0140% R.O./10℃(50/ 100/ 200 kg), 0.0093% R.O./10℃(150/ 300 kg), 0.0112% R.O./10℃(250 kg) |
Temperature effect on span | 0.0175% R.O./10℃(+20 to +40℃), 0.0117% R.O./10℃(−10 to +20℃) |
Input resistance | 300 to 500 Ω |
Output resistance | 300 to 500 Ω |
Recommended excitation voltage | 1 to 12 V |
Insulation resistance | 2000 MΩ or more |
Degrees of protection | IP67 |
Cable | 6 conductor shield cable 3 m Cable end: 7 wires |
Cable color code | +EXC:Blue +S:Green -S:Gray -EXC:Black +SIG:White -SIG:Red SHIELD:Yellow |
Load cell material | Aluminum |
Deflection at rated | 0.5 mm or less |
Natural frequency | 50KG:734 Hz 100KG:877 Hz 150KG:961 Hz 200KG:1024 Hz 250KG:1070 Hz 300KG:1105 Hz |
Maximum off center distance |
150 mm |
Maximum platform size |
600 × 500 mm |
Weight | 0.6 kg |

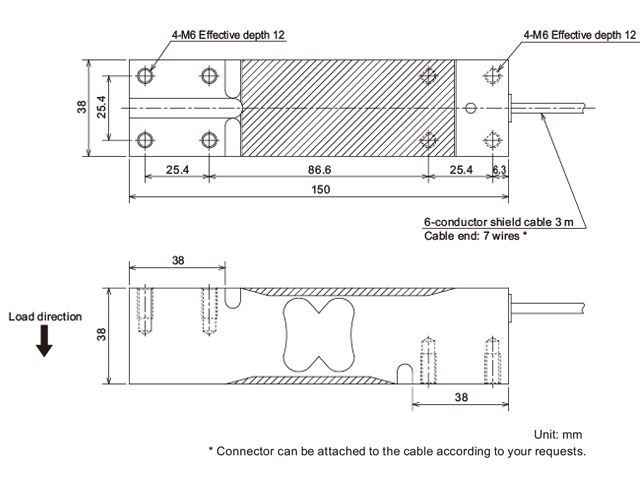

External dimension
