Product outline
Compact compression type with a diameter of 20 mm and a height of 9.5 mm.
● Capacity 100 N / 200 N
● Construction material:stainless steel
● Compact compression type loadcell with a diameter of 20 mm and a height of 9.5 mm
● UNLRS-FG: W/ plate for screw fastening
Specifications
Model |
UNLRS-100N, UNLRS-100N-FG, UNLRS-200N, UNLRS-200N-FG |
|
---|---|---|
Rated capacity | 100, 200 | N |
Rated output | 1±20% | mV/V |
Safe overload | 150 | %R.C. |
Zero balance | ±20 | %R.O. |
Non-linearity | 0.3 | %R.O. |
Hysteresis | 0.3 | %R.O. |
Repeatability | 0.1 | %R.O. |
Compensated temperature range | 0 to +60 | ℃ |
Safe temperature range | -10 to +60 | ℃ |
Temperature effect on zero | 2.0 | %R.O./10℃ |
Temperature effect on span | 1.0 | %R.O./10℃ |
Input resistance | Approx.350 | Ω |
Output resistance | Approx.350 | Ω |
Recommended excitation voltage | 2.5 | V |
Maximum excitation voltage | 6 | V |
Insulation resistance(DC50V) | 1000 or more | MΩ |
Cable |
φ3 4-conductor color shield cable. Length 3m. End treatment 5-leads. |
|
Cable color code |
+EXC:Red +SIG:Green -EXC:White -SIG:Black SHIELD:Yellow |
|
Loadcell material | Stainless steel | |
Deflection at rated | 0.015 | mm |
Natural frequency |
100N:21 200N:25 |
kHz |
Weight |
100N:5 100N-FG:18 200N:5 200N-FG:18 |
g |

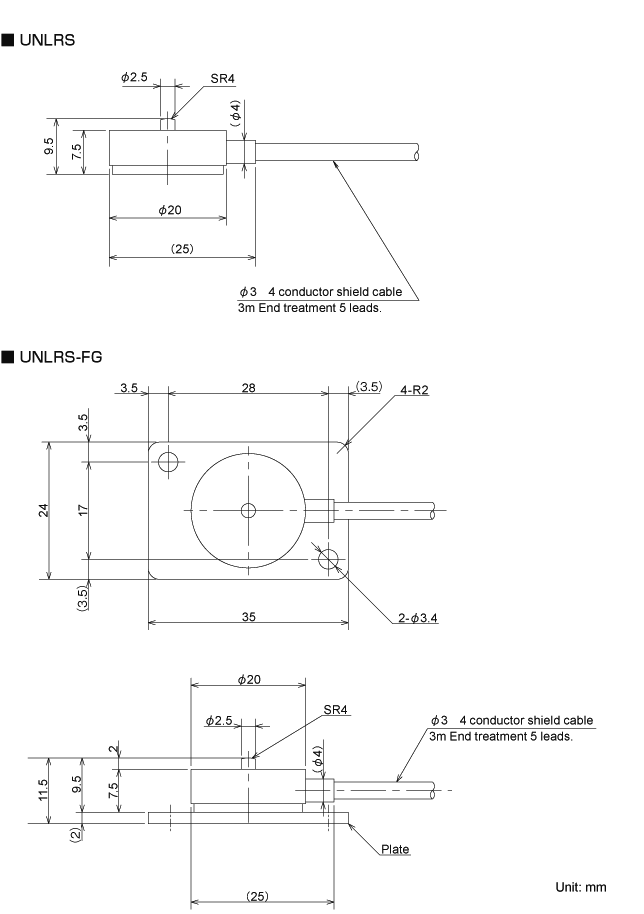

External dimension
Download
Product catalogue(PDF)
|
UNLRS catalogue(592 KB) |
---|
