Product outline
Most appropriate for load control of hopper scales, conveyor scales, etc.
● High accuracy, constructed of stainless steel, hermetically sealed
● Stainless steel bellows that eliminate disturbance
● Applications: Hopper scales, conveyor scales, etc.
Specifications
Model | Z6FD1-5KG | Z6FC3-10KG |
Z6FC3-20KG, Z6FC3-50KG, Z6FC3-100KG, Z6FC3-200KG, Z6FC3-500KG, Z6FC3-1t |
|
---|---|---|---|---|
Rated capacity | 5kg | 10kg | 20kg, 50kg, 100kg, 200kg, 500kg, 1t | |
Rated output | 2.0 +0.02 -0.002 | 2±0.1% | 2±0.05% | mV/V |
Safe overload | 150 | %R.C. | ||
Non-linearity | 0.05 | 0.0180 typ. | %R.O. | |
Hysteresis | 0.05 | 0.0170 typ. | %R.O. | |
Creep | 0.049 | 0.0166 | %R.O./30min | |
Compensated temperature range | -10 to +40 | ℃ | ||
Safe temperature range | -30 to +70 | ℃ | ||
Temperature effect on zero | 0.05 | 0.0125 | %R.O./10℃ | |
Temperature effect on span | 0.05 | 0.0080 typ. | %R.O./10℃ | |
Input resistance | 350 to 480 | Ω | ||
Output resistance | 356±0.2 | 356±0.12 | Ω | |
Maximum excitation voltage | 12 | V | ||
Insulation resistance | 5000以上 | MΩ | ||
Degrees of protection | IP68 | |||
Cable | φ5.4 6-conductor color shield cable. Length 3m | |||
Cable color code |
+EXC:Blue +S:Green -S:Gray -EXC:Black +SIG:White -SIG:Red SHIELD |
|||
Loadcell material | Stainless steel | |||
Deflection at rated |
5KG:0.24 10KG:0.3 20KG:0.29 50KG:0.27 100KG:0.31 200KG:0.39 500KG:0.6 1T:0.55 |
mm |
||
Weight |
5KG~500KG:0.5 1T:2.3 |
kg |

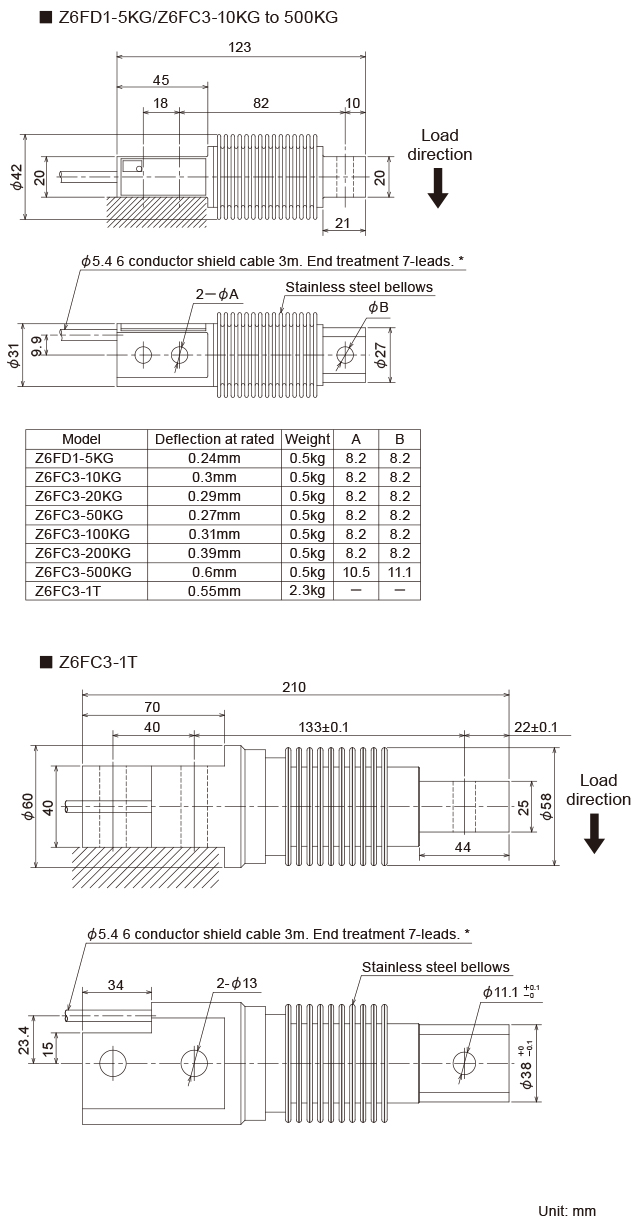

External dimension
Download
Product catalogue(PDF)
|
Z6FC3/Z6FD1 catalogue(456 KB) |
---|
Inquiry - Z6FC3,Z6FD1 Load Cell (Weighing Load Cell)
