F805AT (Weighing Indicator)

Quantity: In Stock

F805AT

LCD Touch Panel Display All-in-One Type Weighing indicator with touch panel


Product outline

F805AT is a full-fledged device of an all-in-one type that deserves to be called the top-of-the-line Weighing indicator.



F805AT adopts a color LCD touch panel which enables simple and comfortable operation by greatly enhancing the visibility of weight display, various setting values display and status display. It provides high-speed A/D conversion and digital processing capability at an operating speed of 1000 times/sec There are substantial interfaces that allow direct connection to major PLCs including OMRON DeviceNet and MITSUBISHI CC-Link. F805AT, which was developed specifically for weighing systems, is a full-fledged device of an all-in-one type that deserves to be called the top-of-the-line Weighing indicator.



Please specify requirement for CE marking certified product when making your order.




Specifications

ANALOG SECTION
Excitation voltage 10V or 5V DC±5% (digital adjustment), Output current; within 120mA, remote sense type (Up to 4 loadcells at 350Ω are parallel-connectable.)
Zero adjustment range 0 - approx. 2mV/V (digital adjustment)
Gain adjustment range 0.3 - 2.0mV/V (digital adjustment)
Min. input sensitivity 0.3μV/count (at valid 1/4 scale division), 0.075μV/count (at invalid 1/4 scale division)
Accuracy Non-linearity: within 0.01%/FS (Typ: 0.005%/FS at room temperature)
Zero drift: within 0.1μV/°C RTI (Typ: 0.08μV/°C)
Gain drift: within 15 ppm/°C (Typ: 5 ppm/°C)
Noise: within 0.1μVp-p RTI (0.1 - 10 Hz)
Analog filter Bessel low-pass filter (-12dB / oct.) selectable from 2, 4, 6, 8 Hz
A/D converter Speed: 1000 times/sec (switchable to 200 times/sec)
Resolution: 16 bit (binary)
Min. display resolution 1/10000 (at valid 1/4 scale division), 1/40000 (at invalid 1/4 scale division)
Secondary calibration Equivalent input calibration method that allows calibration by simply key-inputting the rated value of a sensor without applying an actual load
Min. calibration resolution at secondary calibration (1/1000 at room temperature)

SETTING SECTION
Setting method ・Setting by touch panel operation
・Setting from host computer via RS-232C is also possible.
Setting value storage ・Default: NOV RAM (nonvolatile RAM)
・Other setting values: C-MOS RAM with backup of a lithium battery (Depends on usage conditions and storing environment, but memory can be kept for approx. 7 years or more.)
Setting value protection Setting operation can be locked to prevent unauthorized modifications of default values and calibration by malfunction (LOCK)

INPUT / OUPUT SECTION
External signal output - Logic: Transistor’s open collector output (Emitter = COM terminal); Output is LO when transistor is ON.
- Near zero, SP1, SP2, SP3, Under, go, over, comp, discharge, Low limit, high limit, stable, weight alarm, error, final error, run or total limit External signal input
External signal input - Input is ON when shorted to COM terminal by contact (relay switch, etc.) or non contact (transistor, open collector, etc.).
- Gross / Net weight change, Digital zero, Tare off, Tare reset, Hold or judge, Feed / discharge change, Accumulation command, Accumulation clear, Start, Stop, Discharge command, Code No. designation, Forced-discharge command, Discharge gate open, Discharge gate close, Code No. designation selection, Graph drawing
Weighing code selection input BCD 2 digits (00 - 99), 100 codes
Interface ・ SIF:2-wire type serial interface (standard); Interface to link with Unipulse printer or external display
・ SI2:2-wire type bi-directional serial interface (standard): Interface to link with peripherals such as a printer or display
・ 232:RS-232C communication interface (standard): Write (change) / read weight data, various statuses and setting values via commands from host computer
・ BCO:BCD parallel data output interface (Optional): Parallel interface to transmit weight data to various peripherals
・ BCI:BCD parallel data input interface (Optional): Parallel interface to receive various setting values from external unit
・ 485:RS-485 communication interface (Optional): Allows longer-distance communication than RS-232C. ID numbers are set, and multiple units of F805AT are parallel-connectable.
・ DAC:D/A converter interface (Optional): Interface to convert weight data to current signal and output it
・ CCL:CC-Link interface (Optional): Interface to link F805AT with network such as MITSUBISHI general-purpose sequencer
・ ODN:DeviceNet interface (Optional): Interface to link F805AT with DeviceNet such as OMRON CompoBus/D

DISPLAY SECTION
Display TFT color LCD (Display area 116.8 (W) x 88.0 (H) [mm], 320 x 240 dot
Weight value display 5 digits, Minus sign on most significant digit.
Unit Selectable from t, kg, g, N, lb, none
Decimal point Selectable 0. 0.0, 0.00, 0.000
Display update rate Selectable from 3, 6, 13, 25 times/sec (A/D conversion rate is fixed.)
Scale capacity 5-digit numerical values (up to 99999)
Over display LOAD (A/D converter input over), OFL1; (Net weight > Net over set value) [5-digit setting], OFL2: (Gross weight >Capacity +9 scale divisions). OFL3; Gross weight > Gross over set value (5-digit setting)
Center zero True zero point (0±1/4 scale) or the center of each value is displayed.
Status display LOCK, HOLD, ZALM, STAB, TARE, RUN, HI, LO, NZ, SP1, SP2, SP3, OVER, GO, UNDER, COMPL, DCHG
Set value display CODE, FINAL, OVER, UNDER, BEFORE FINAL, FF
Accumulation display Accumulation times (4 digits), Accumulation value (9 digits)
No. display Alarm No. (2 digits): Error No. in sequence control
Sequence No. (3 digits): Process No. in sequence control

GENERAL SPECIFICATIONS
Excitation voltage 100 - 240V AC (+10% - 15%) (Free power supply 50/60 Hz)
12 - 24V DC (±15%) (Please specify when ordering)
Power consumption 20W
Inrush current (Type) 15A, 5msec: 100V AC average load condition (cold start at room temperature)
30A, 5msec: 200V AC average load condition (cold start at room temperature)
10A, 0.5msec: 12V DC average load condition (cold start at room temperature)
35A, 0.4msec: 24V DC average load condition (cold start at room temperature)
Operating conditions Temperature: Operating temperature range -10 - +40°C; Storage temperature range -20 - +60°C
Humidity: within 85% RH (no condensing)
External dimensions 174 (W) x 135 (H) x 159 (D) mm (protruding part not included)
Panel cutout dimensions 165 (W) (+2 - 0) x 130 (D) [mm]
Panel thickness 1.6 - 3.2 mm
Weight Approx. 2.3 kg
CE marking certification EMC directives  EN61326-1
Safety standard  EN61010-1, EN62311
(Please specify requirement for CE marking certified product when making your order)
(DC power supply is not certificationed to CE Marking. )

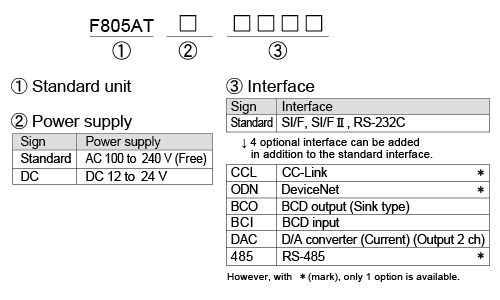

OPTION
BCO BCD parallel data output interface
BCI BCD parallel data input interface
DAC D/A converter interface (2ch interface installed)
485 RS-485 communication interface*
ODN DeviceNet interface*
CCL CC-Link interface*
Number of option installations Up to 4 options and 1 serial communication interface are available. (With*, only 1 option is available.)

ACCESSORIES
AC input cord (2m), (only for AC specifications) 1
AC input cord replacement plug (only for AC specifications and CE compatibility) 1
Mini-driver for terminal block connection 1
Loadcell connector 1
External I/O signal connector 1
Operation Manual 1
Ferrite core (only for CE compatibility) 2
BCD output connector (with BCD output option) 1
BCD input connector (with BCD input option) 1
D/A converter connector (with D/A converter) 1
CC-link connector (with CC-Link option) 1
DeviceNet connector (with DeviceNet option) 1






Option

Model Interface Slots installed
BCO BCD parallel data output interface
(General-purpose slot option…3 slots installed (① to ③below))
1~3
BCI BCD parallel data input interface
(General-purpose slot option…3 slots installed (① to ③below))
1~3
DAC D/A converter interface
(General-purpose slot option…3 slots installed (① to ③below))
1~3
485 RS-485 communication interface
(Advanced communication slot option…1 slot installed (④ below))
4
ODN DeviceNet interface
(Advanced communication slot option…1 slot installed (④ below))
4
CCL CC-Link interface
(Advanced communication slot option…1 slot installed (④ below))
4


Slot chart




Optional accessories

Model Description
CAAC3P-P2 AC input cord 2 m
CAAC3P-CEE7/7-P1.5 AC input cord (withstand pressure: 250V) 1.5m
CA4131 (6-core) cable with JR connector at one end (cable end is separated) 3 m
CA4230 JR-PRC conversion relay (6-core) cable 0.3 m
CA4311 JR-PRC conversion relay (6-core) 4-wire type / 6-wire type (for 520A) 1m
CN3P-2P 3P-2P conversion plug for AC input cord
CN20 D/A converter connector
CN21 BCD I/O connector
CN22 57 series 50p connector for external I/O
CN34 D-Sub 9p connector for RS-232C
CN71 CC-Link connector
CND01 DeviceNet connector
TSU02 Lightning surge unit
TSU03 Lightning surge unit DS specification
GMP165×130 Rubber packing
